Overview

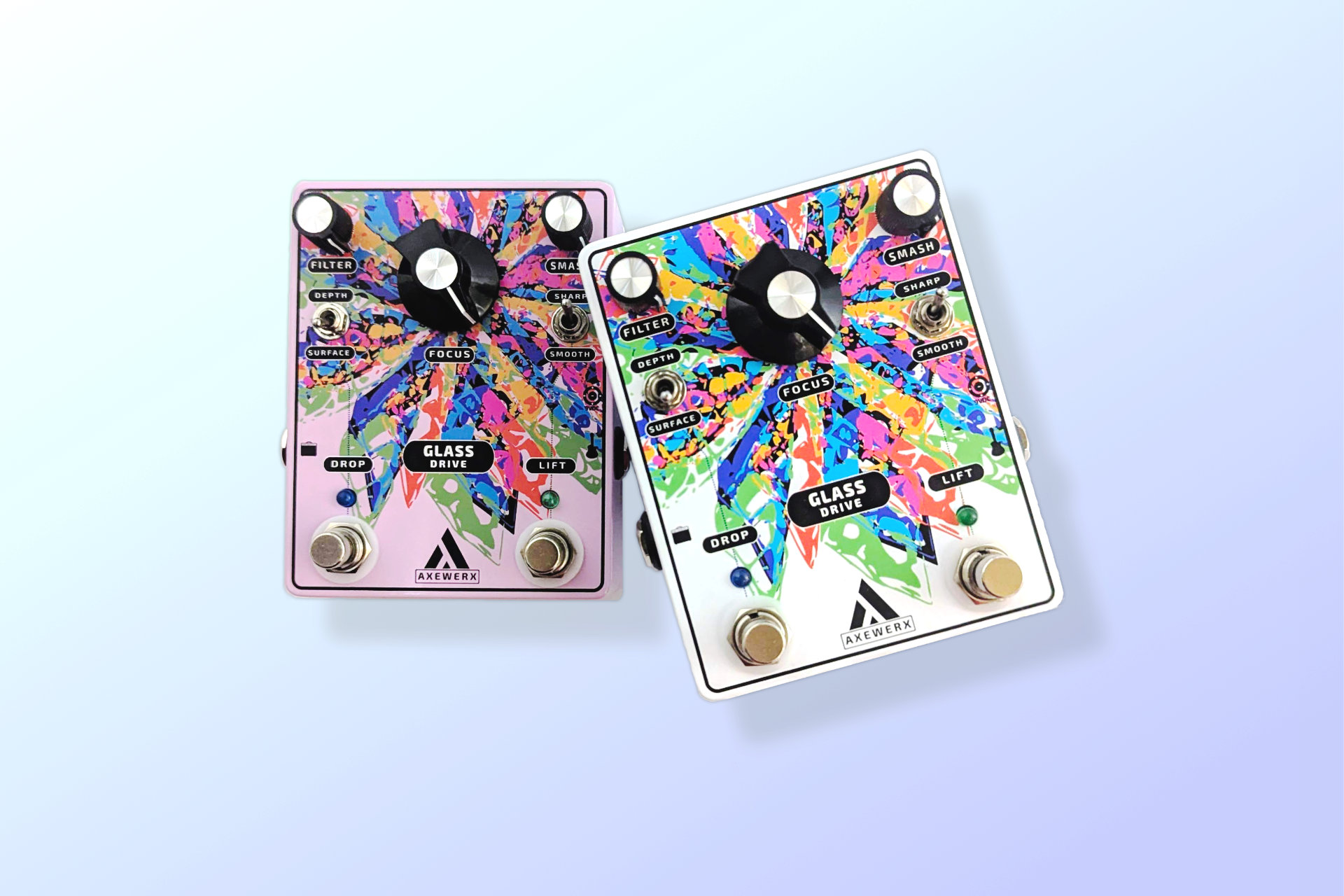

Filthy & flexible dual-stage octave dirt A custom-made analog pedal (with one digital chip...shhh). Breadboarded, refined, designed, and assembled by hand on a custom PCB. Built to deliver two radically different flavors of octave-driven tone in one enclosure.

Features

• Dual-stage octave dirt with two independent channels
• Buffered input for signal stability and clarity
• Right side: Octave up harmonic distortion with toggle to engage or bypass octave effect
• Left side: Octave down, with selectable -1 and -2 octaves
• Both channels can be engaged independently or stacked together
• Active mixer stage blends the two channels
• Tone control shaping ("FILTER")
• FOCUS control trims each effect path and blends in clean signal
• Master volume control for output leveling ("SMASH")
• Custom PCB and hand-built assembly
• UV-printed enclosure graphics
• Carefully selected components for expressive octave textures
• Designed for sounds ranging from octave-up fuzz to sub-octave rumble

Specifications

More About The Pedal

Each unit is assembled, measured, and tested by hand to ensure consistent response and long-term reliability. Input/Output/Power sections are separated on their own PCB from the primary effect circuits, for high circuit fidelity and ease of repair.

Demo

Here is a demo of the pedal. Check out Axewerx on Instagram for more demos.
